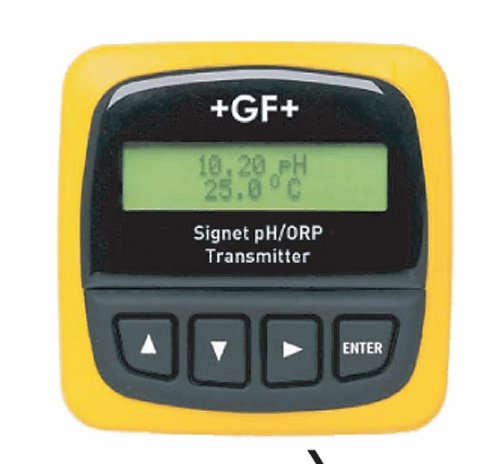

+GF+ Signet pH/ORP Transmitter, field-mount with relays

+GF+ Signet pH/ORP Transmitter, field-mount with relays Review

+GF+ Signet pH/ORP Transmitter, field-mount with relays Feature

• +GF+ Signet pH/ORP Transmitters
• Type: Transmitter
• Range (pH): 0.00 to 14.00
• Range (Temperature): -25 to 120°C
• Range (mV): -1000 to 2000
• Accuracy (pH): -0.03 to 0.03
• Accuracy (Temperature): -0.5 to 0.5°C
• Resolution (pH): 0.01
• Resolution (Temperature): 0.1°C
• Resolution (mV): 1 mV
• Output (Current): 4 to 20mA
• Output (Relay): Two SPDT 5 A at 30 VDC or 250 VAC resistive load maximum; Hi/Lo/Pulse/Off programmab
• Dimensions: 3.8125 in W x 3.8125 in H x 4.1875 in D
• Housing: NEMA 4X
• Dead band: User-adjustable
• Display: 2 x 16 alphanumeric LCD
• Power: 12 to 24 VDC
• Brand: GFSignet
• Part Number: AO-56560-20
• Package Quantity: EACH

Order electrodes, preamplifiers, and mounting accessories separately. Transmitters auto-configure for either pH or ORP and feature automatic buffer recognition and a scratch-resistant, self-healing display window. Hold function automatically holds the last known process value to allow electrode calibration. Use the simulate function to manually set the current loop output to test or calibrate a PLC or chart recorder.
